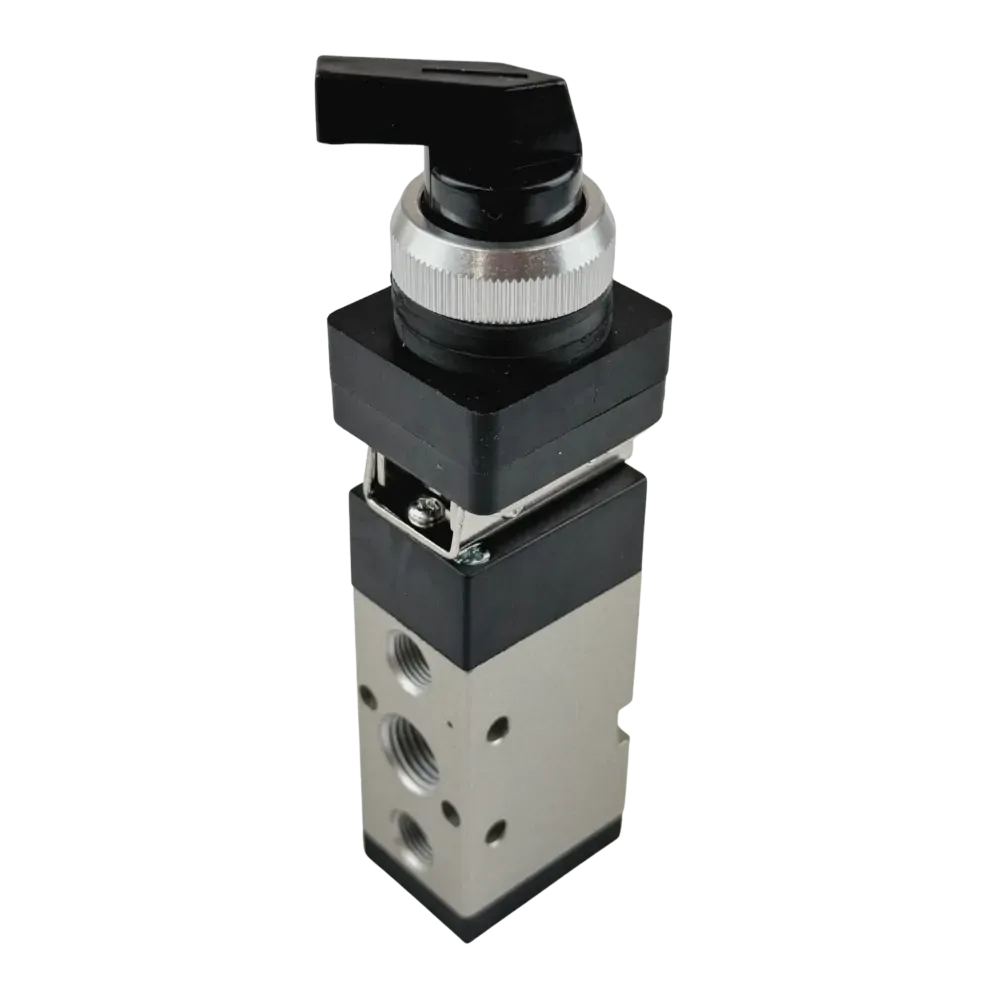

The ROL52 series are a five way two position rotary lever manual control valve. Ideal for controlling cylinders or pneumatic actuators simply by moving the lever one way or the other (it will remain in that position until switched back). Simple to use, install and maintain.

Specification ROL52-02
Port Size (BSPP) 1/4"
Exhaust Port Size 1/8”
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Thermoplastic (Black Only)
Lubrication Not Required
Applicable Medium Air

5 way 2 position rotary lever valve

Size 1/4" BSP
Function 5 way 2 position rotary lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
