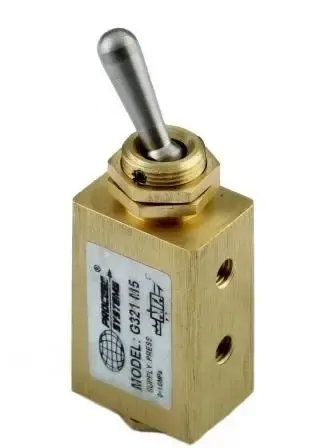

The TOG32 series are a threeway two position toggle control valve. Ideal for controlling small cylinders or spring return pneumatic actuators simply push the toggle one way to operate it will stay in this position until switched back. Often used for cab mounts for controlling spring return pneumatic butterfly valves in water trucks. Simple to use, install and maintain.

Specification TOG32-M5 TOG32-01
Port Size M5 1/8" BSP
Pressure Range 0 to 10 BAR 0 to 10 BAR
Max Inlet Pressure 10 BAR 10 BAR
Medium Temperature 10 to 60°C 10 to 60°C
Body Brass Aluminium
Lubrication Not Required Not Required
Applicable Medium Air Air



M5 1/8" BSP

Size M5 to 1/8" BSP
Function 3 way 2 position toggle
Body Brass
Pressure Range 0 to 10 BAR
Media Air
