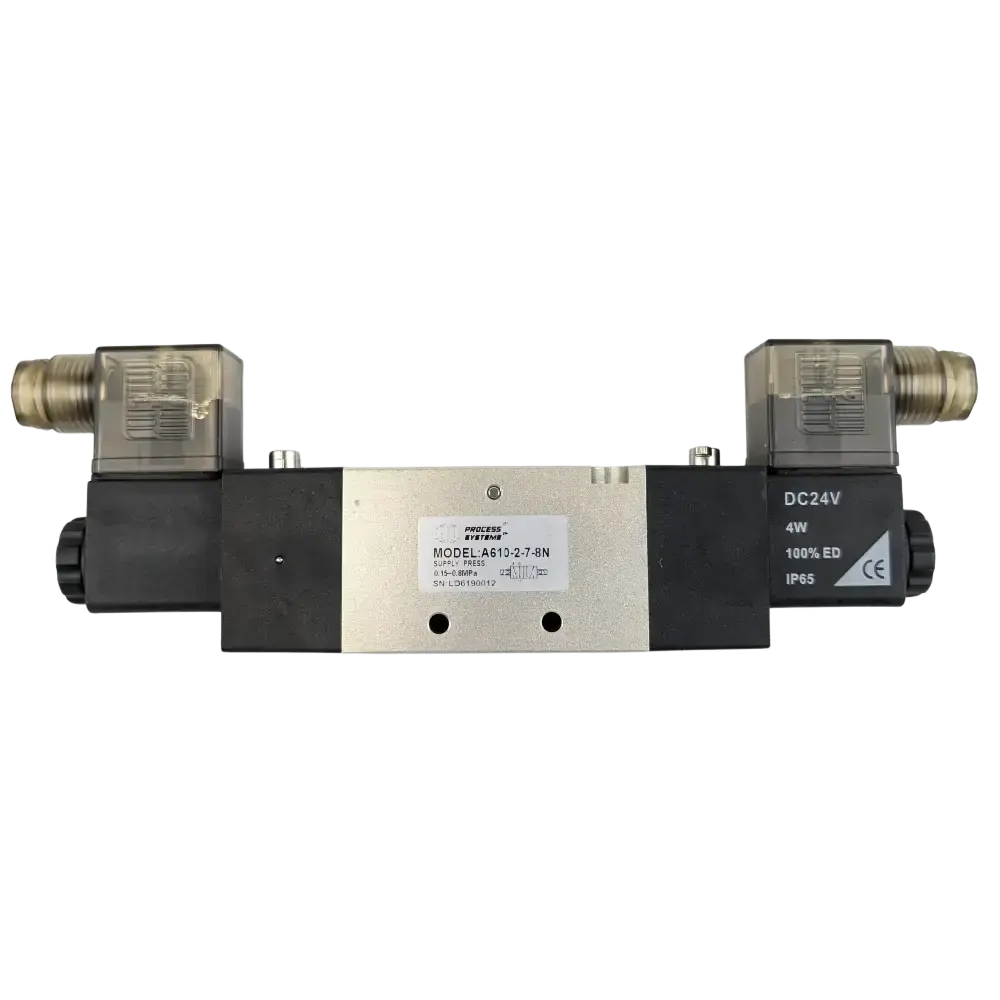

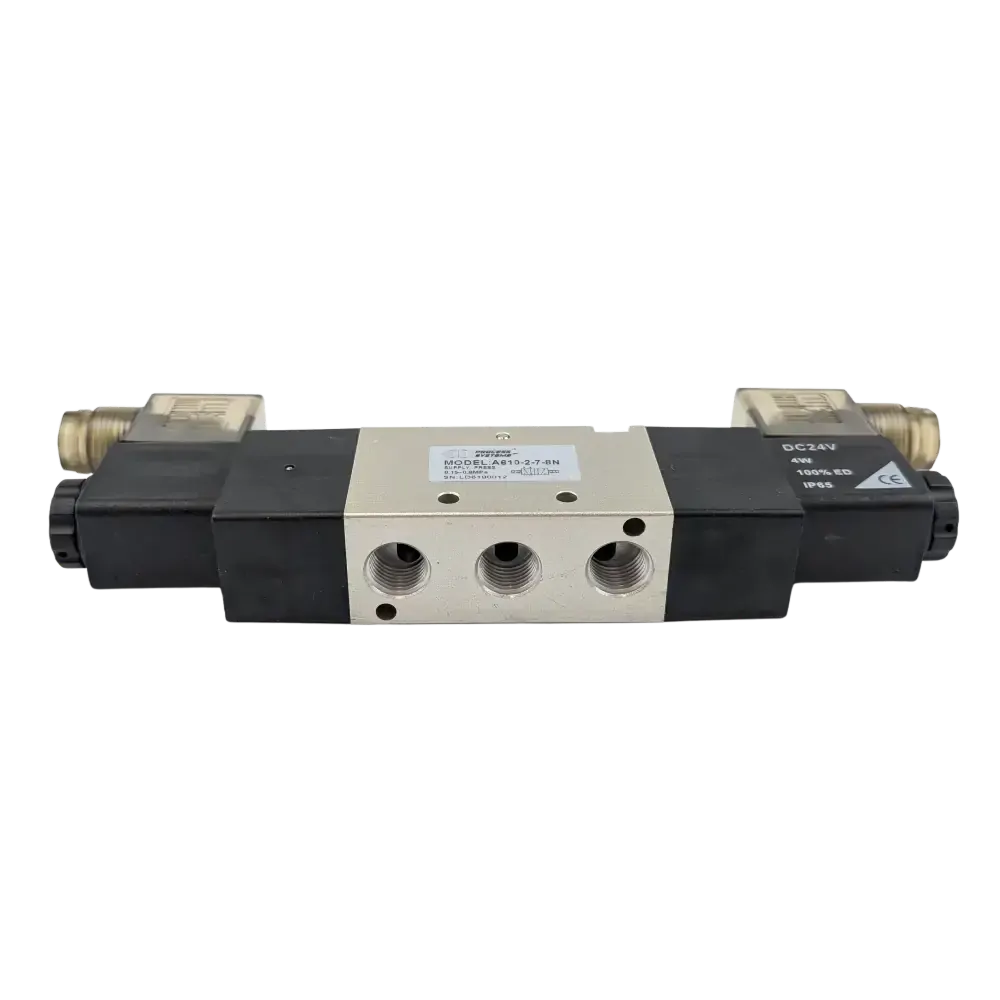

5 way 2 position solenoid valve (solenoid both ends) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Can be mounted on manifolds of up to 12 stations. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
A610-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
A610-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A610-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A610-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Bi Stable 5/2 solenoid valve

Model G(BSP) A B C D E F G H Inlet & Outlet Ports Exhaust Ports K L M
A610-1-5-*N 1/8" 50 20 4.3 24 234 24 4.3 40 1/4" 1/4" 27 45 70
A610-2-7-*N 1/4" 50 20 4.3 24 234 24 4.3 40 1/4 " 1/4" 27 45 70
A610-3-7-*N 3/8" 72 27 4.3 36 266 28 5.5 50 3/8" 1/4" 34 63 74
A610-4-8-*N 1/2" 72 27 4.3 36 266 28 5.5 50 1/2" 1/2" 34 63 74

All dimensions in mm unless shown otherwise.

Size 1/8" to 1/2" BSP
Function 5 way 2 position double solenoid with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
