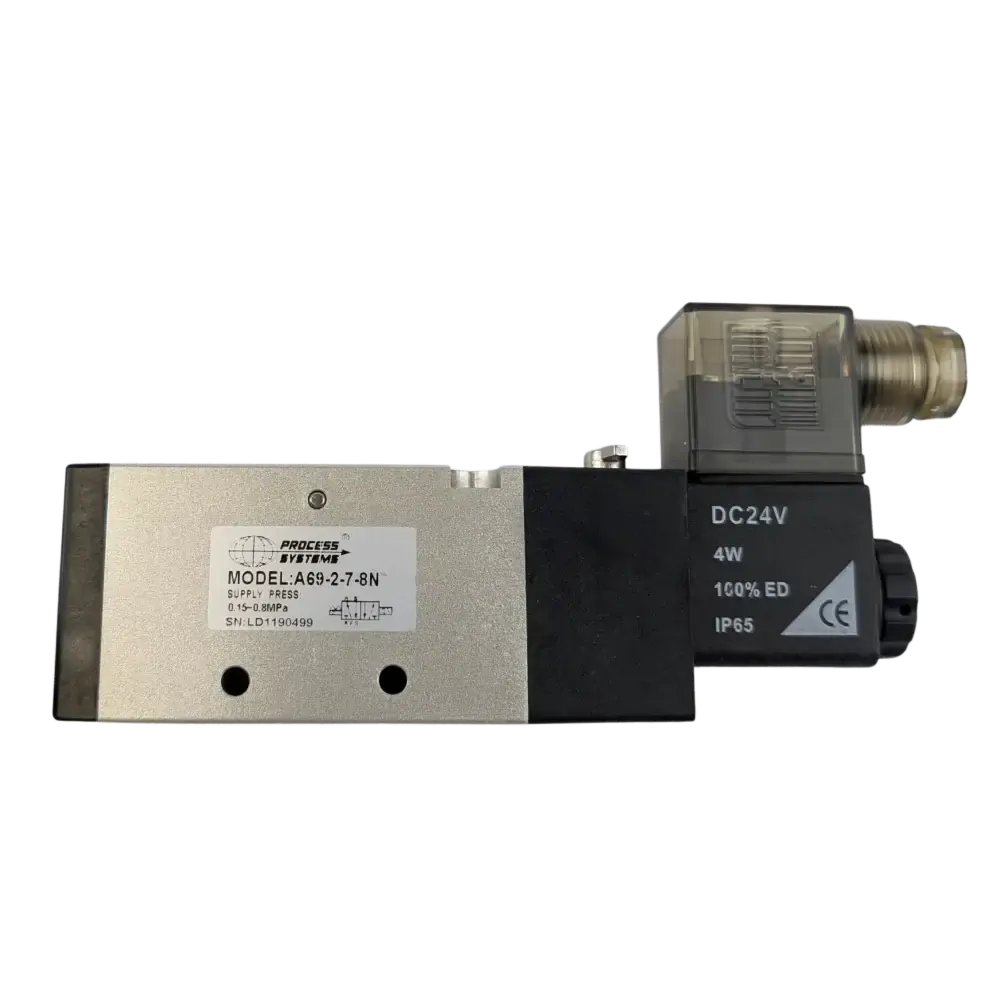

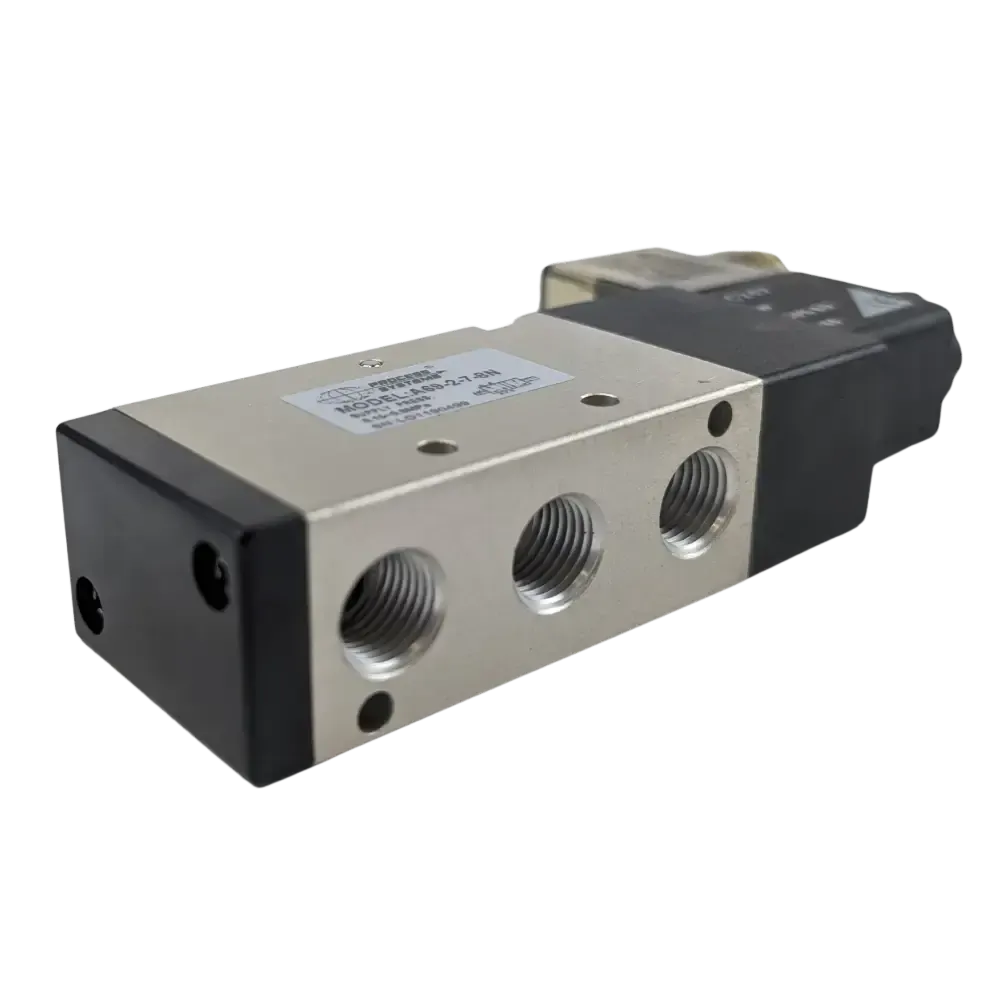

5 way 2 position solenoid valve (solenoid one end and spring on the other) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. This unit can also be mounted on a manifold of up to 12 units. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
A69-1-5-*NM 1/8 5 0.67 1.5 to 8 Bar 5°C to 80°C 0.3 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
A69-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A69-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A69-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

5/2 way solenoid valve dimensions

Model G(BSP) A B C D E F G H Exhaust Ports Inlet & Outlet Ports K L M
A69-1-5-*N 1/8" 38 17 3.3 20 130 20 4.3 35 G1/8" G1/8" 22 36 68
A69-2-7-*N 1/4" 50 20 4.3 24 145 24 4.3 40 G1/4" G1/4" 27 45 70
A69-3-7-*N 3/8" 50 20 4.3 24 145 24 4.3 40 G1/4" G3/8" 27 45 70
A69-4-8-*N 1/2" 72 27 4.3 36 178 28 5.5 50 G1/2" G1/2" 34 63 74

All dimensions in mm unless shown otherwise.

Size 1/8" to 1/2" BSP
Function 5 way 2 position solenoid/spring with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
