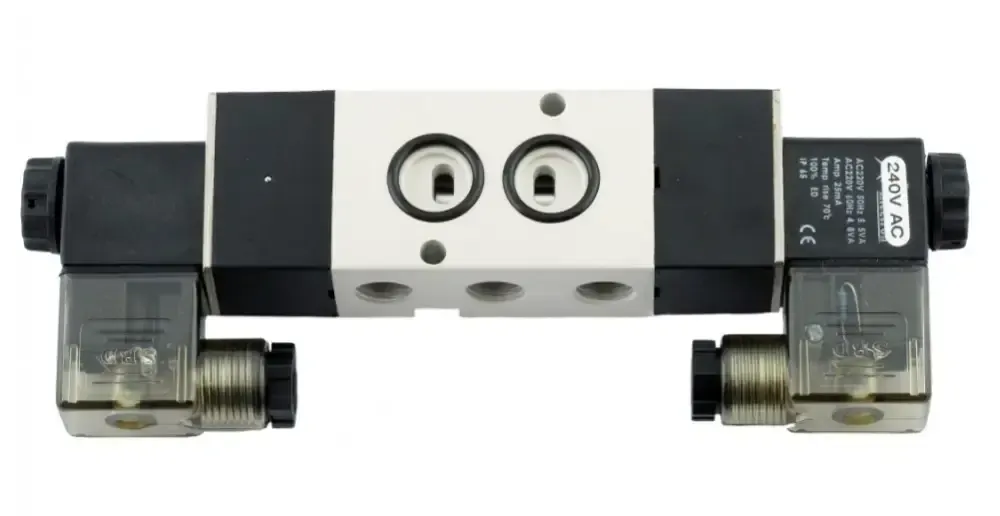

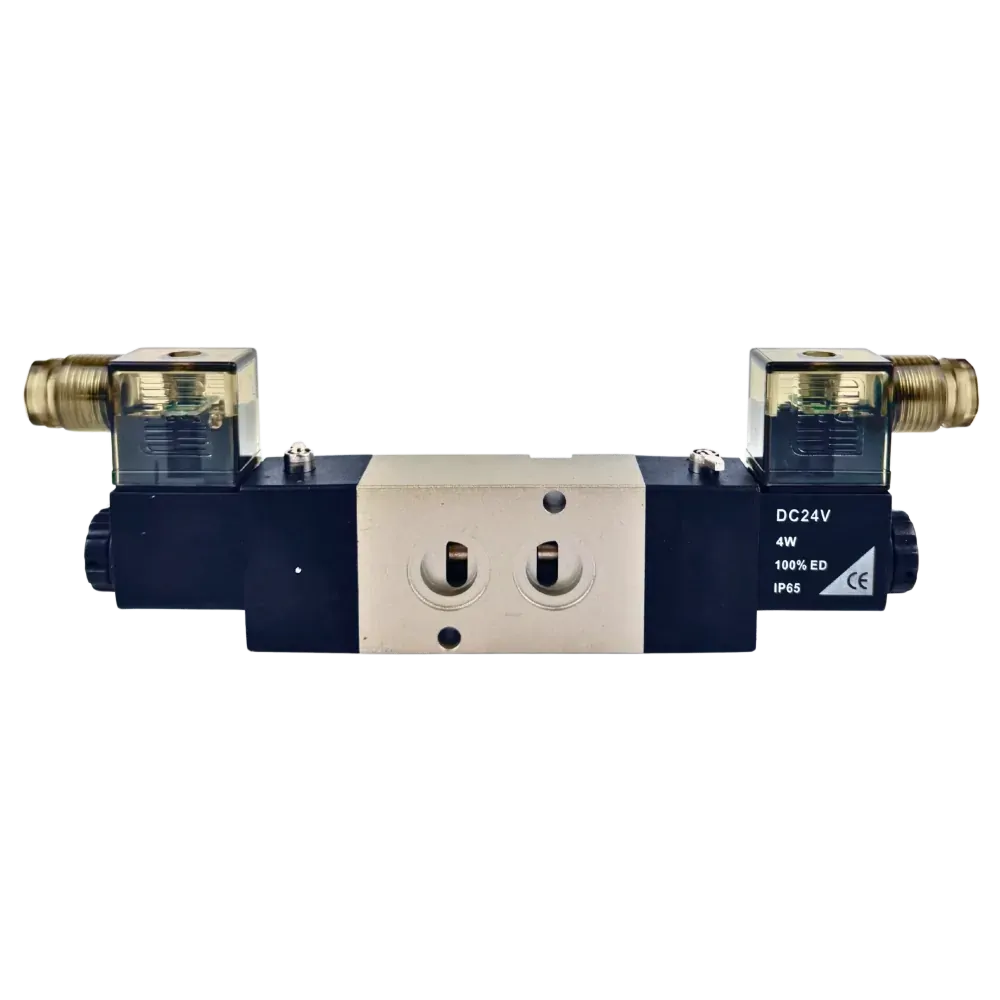

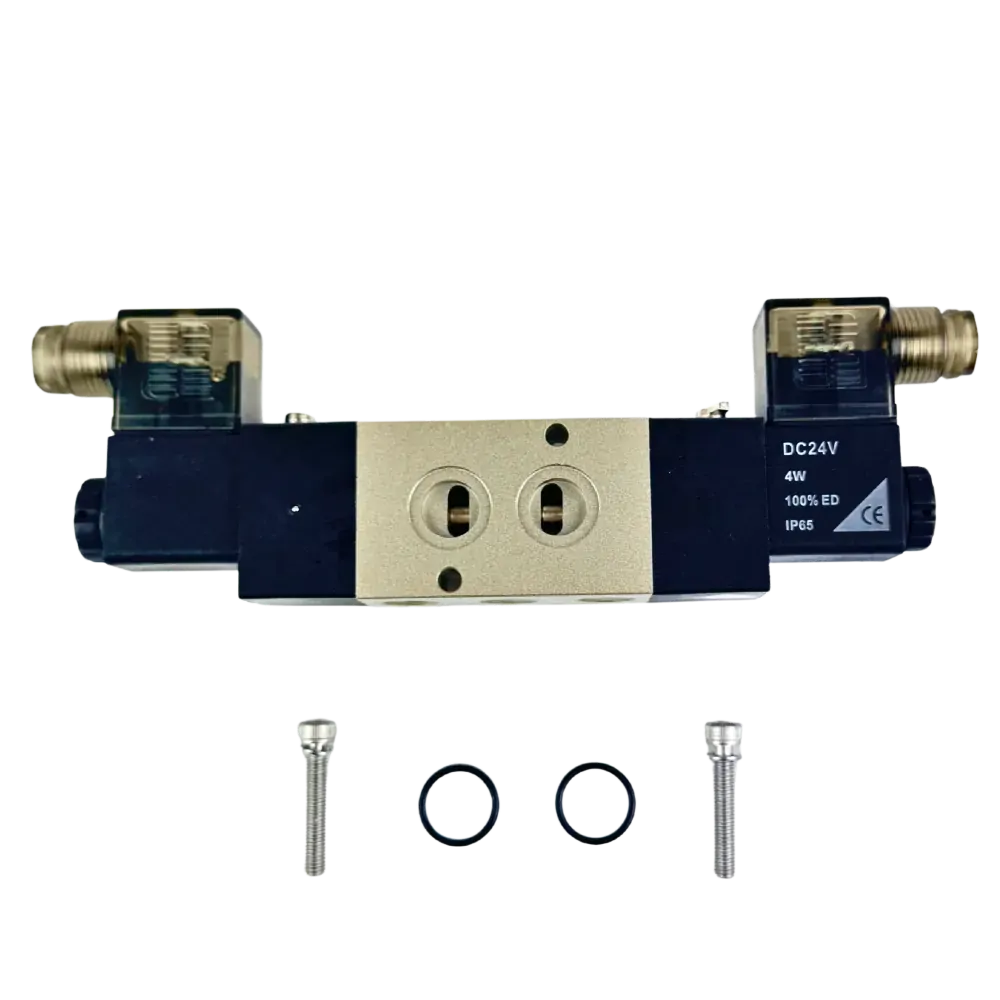

5 way 2 position solenoid valve (double solenoid, one each end) with namur interface making it suitable for direct mounting onto pneumatic actuators (both double acting and spring return). Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Includes mounting screws and gasket orings. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size Orifice ømm CV Pressure Media Temp Weight Kg Coil specifications
END12*5 1/4" BSP 5 1.4 1.5 to 8 BAR 5°C to 80°C 0.5 SC-A1
6 Volt Amps
5 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Size 1/4" BSP Only
Function 5 way 2 position double solenoid namur with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
