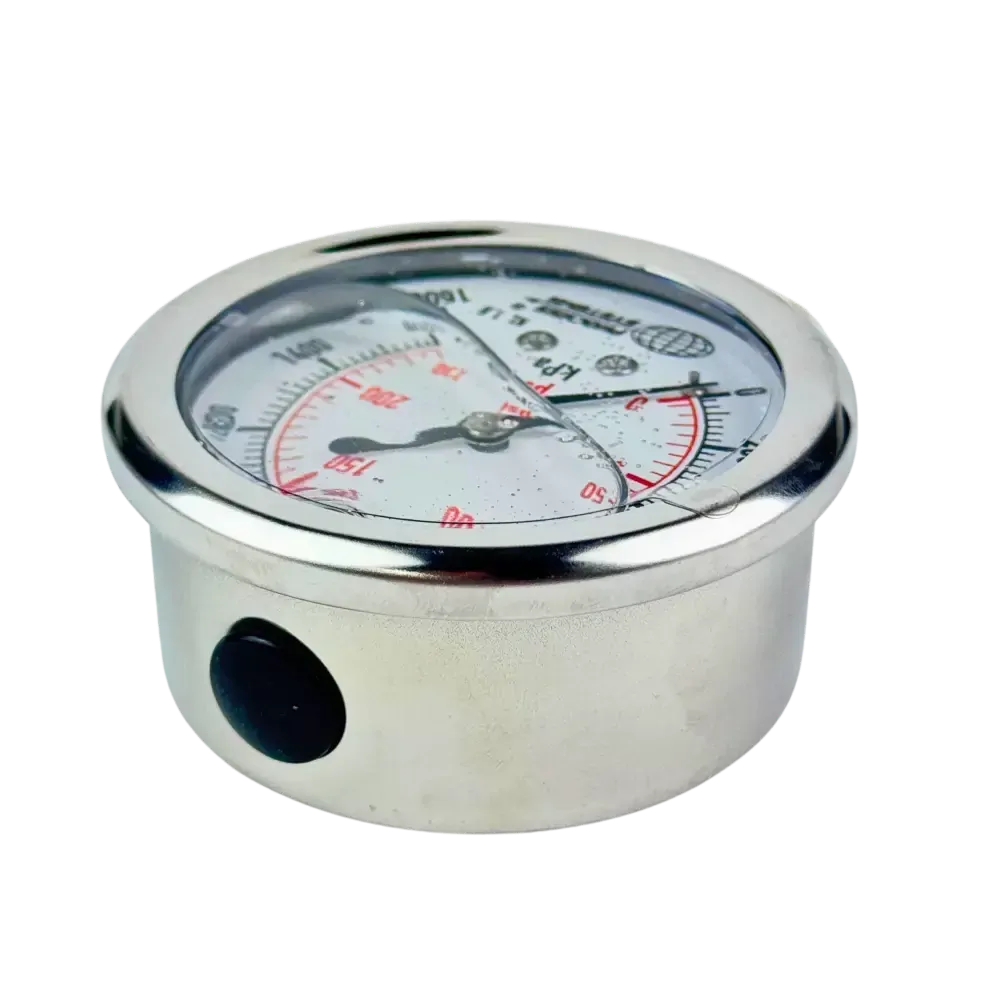

Stainless Steel Case 63mm glycerine filled pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.6% of full scale. Operating temp of -20°C to 60°C. For use on compatable gases and liquids.

Model Range
GAU63B~100V -100 to 0 kpa vacuum (30" Hg)
GAU63B~-100C -100 to 1600 kpa
GAU63B~100 0 to 100 kpa (0 to 15 PSI)
GAU63B~200 0 to 200 kpa (0 to 30 PSI)
GAU63B~400 0 to 400 kpa (0 to 60 PSI)
GAU63B~600 0 to 600 kpa (0 to 90 PSI)
GAU63B~800 0 to 800 kpa (0 to 110 PSI)
GAU63B~1000 0 to 1000 kpa (0 to 140 PSI)
GAU63B~1600 0 to 1600 kpa (0 to 230 PSI)
GAU63B~2500 0 to 2500 kpa (0 to 360 PSI)
GAU63B~4000 0 to 4000 kpa (0 to 580 PSI)
GAU63B~250B 0 to 25000 kpa (0 to 3600 PSI)
GAU63B~400B 0 to 40000 kpa (0 to 5800 PSI)

Size 63mm (2 1/2")
Accuracy +/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper alloy
Movement Copper alloy
Connection Brass
Thread BSPT up to 4000kPa, BSPP above 4000kPa
Scale Dual Scale kPa/PSI

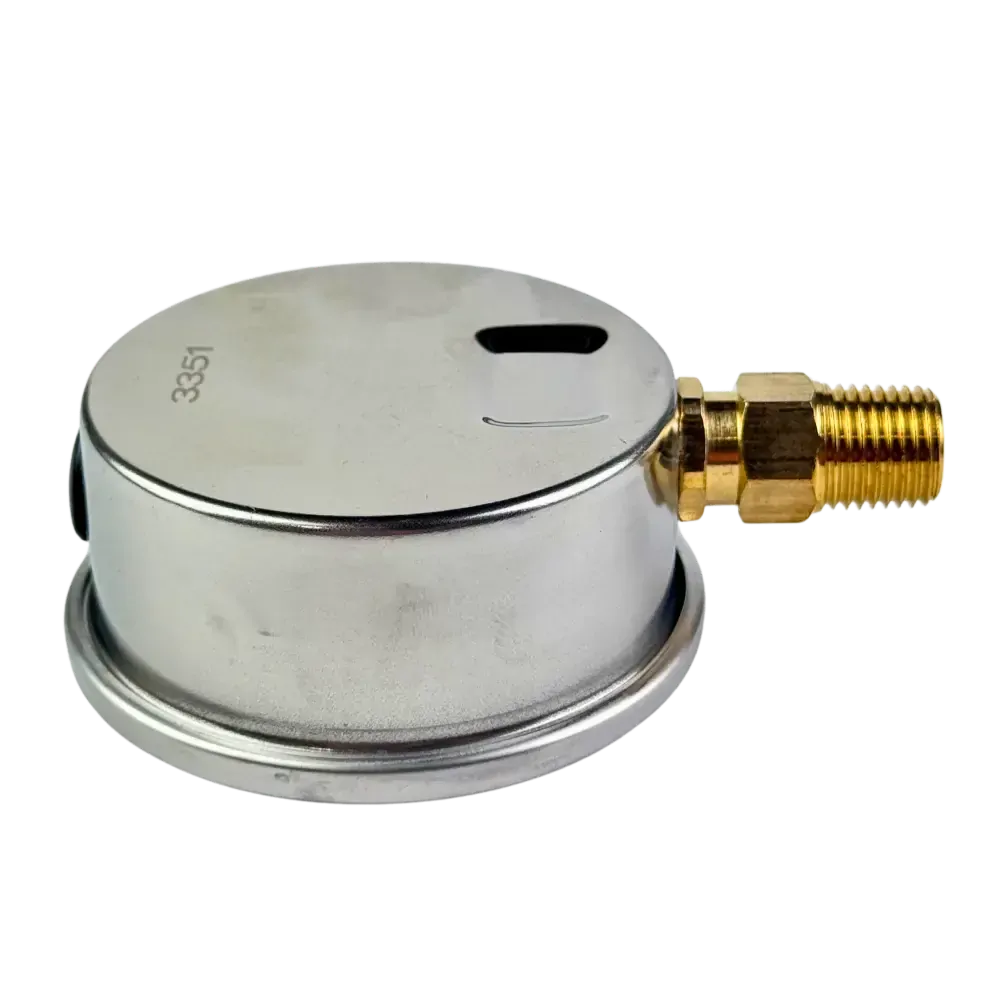

63mm Stainless Steel Bottom Entry Pressure gauge

63mm Bottom Entry Gauge Construction

Pressure Range -100 kpa to 40,000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 1/4" BSP Bottom Entry
Factory Accredited CE, ISO 9001, TUV
