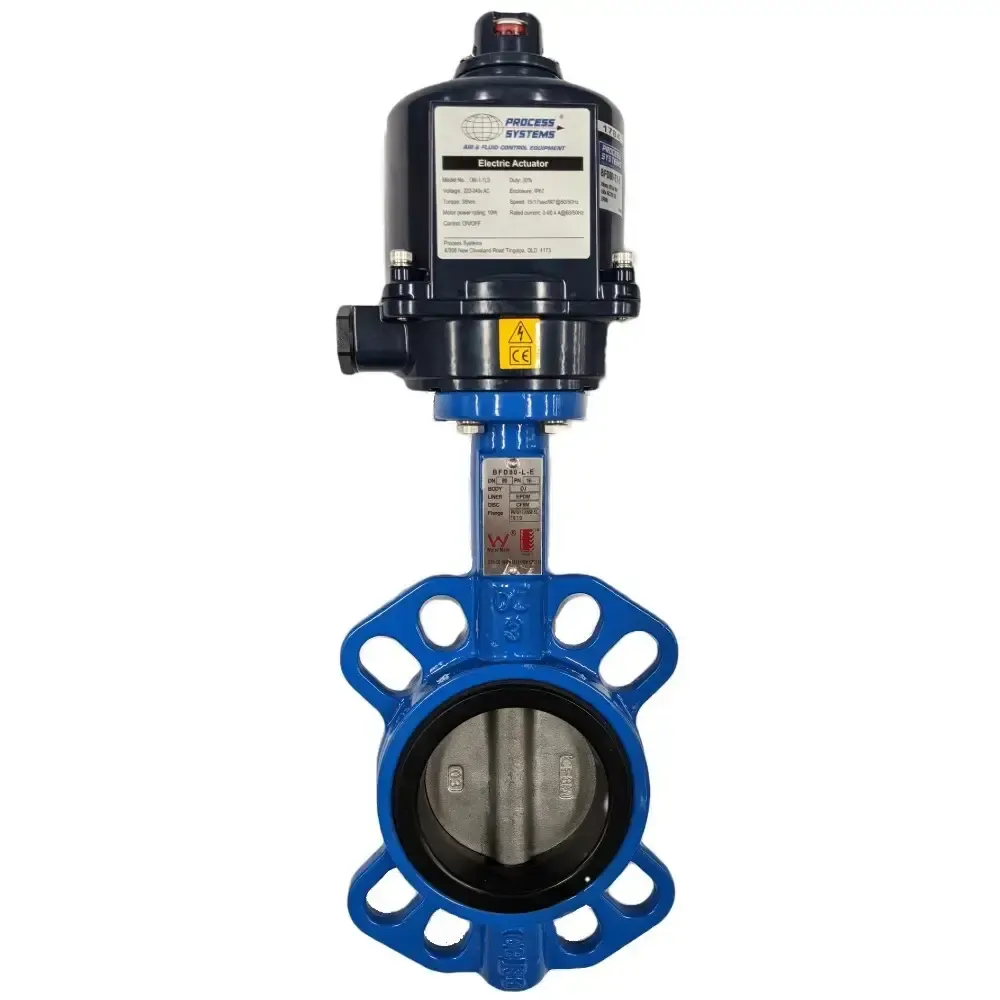

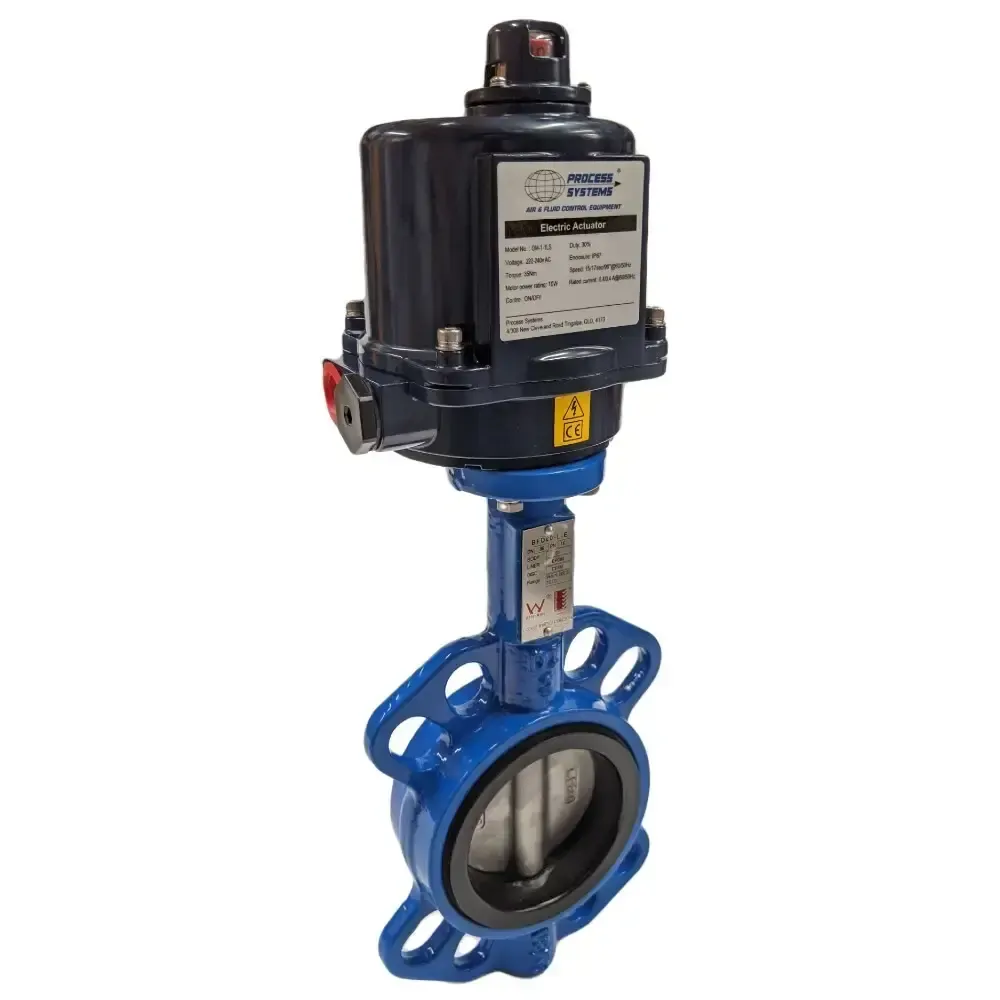

The BFD series has a ductile iron body, 316 S.S disc, EPDM seat and an electric actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality IP67 electric actuator (available in all voltages). The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise. Common applications include water trucks, irrigation, cement hoppers, irrigation and other industrial applications. If sizes above 600mm are required please contact us.

Model Size (mm) Actuator Media Pressure Media Temperature Manual Override
BFD50-E*-E 50 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD65-E*-E 65 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD80-E*-E 80 0M-1 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Spanner Drive
BFD100-E*-E 100 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Allen Key
BFD125-E*-E 125 0M-A Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Allen Key
BFD150-E*-E 150 0M-2 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD200-E*-E 200 0M-3 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD250-E*-E 250 0M-4 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD300-E*-E 300 0M-5 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD350-E*-E 350 0M-6 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD400-E*-E 400 0M-7 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD450-E*-E 450 0M-8 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD500-E*-E 500 0M-9 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel
BFD600-E*-E 600 0M-11 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) Handwheel

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For sizes over 600mm or different seat material please contact us.

Model DN Actuator A B C C1 H1 H2 AS2129 Table D AS2129 Table E ANSI150
ØD1 n-Ød1 ØD1 n-Ød1 ØD1 n-Ød1
BFD50-E*-E 50 0M-1 108 155 42 46.1 225 70 114 4-18 114 4-18 120.5 4-19
BFD65-E*-E 65 0M-1 108 155 44.7 49.1 245 77 127 4-18 127 4-18 139.5 4-19
BFD80-E*-E 80 0M-1 108 155 45.2 48.4 261 87 146 4-18 146 4-18 152.5 4-19
BFD100-E*-E 100 0M-A 108 200 52.1 55.3 305 112 178 4-18 178 4(8)-18 190.5 4(8)-19
BFD125-E*-E 125 0M-A 108 200 54.4 58.8 332 128 210 4(8)-18 210 4(8)-18 216 4(8)-22
BFD150-E*-E 150 0M-2 200 290 55.8 59.1 361 143 235 4(8)-18 235 4(8)-22 241.5 4(8)-22
BFD200-E*-E 200 0M-3 200 290 60.6 64.1 423 173 292 4(8)-18 292 4(8)-22 298.5 4(8)-22
BFD250-E*-E 250 0M-4 234 315 65.6 71.8 499 210 356 4(8)-22 356 4(12)-22 362 4(12)-25
BFD300-E*-E 300 0M-5 234 315 76.9 81 578 244 406 4(12)-22 406 4(12)-26 432 4(12)-25
BFD350-E*-E 350 0M-6 234 315 76.5 79.5 635 267 470 4(12)-26 470 4(12)-26 476 4(12)-29
BFD400-E*-E 400 0M-7 234 420 86.5 90 697 297 521 4(12)-26 521 4(12)-26 539.5 4(16)-29
BFD450-E*-E 450 0M-8 260 590 105.6 109 737 315 584 4(12)-26 584 4(12)-26 578 4(16)-32
BFD500-E*-E 500 0M-9 260 590 131.8 135 840 360 641 4(16)-26 641 4(16)-26 635 4(20)-32
BFD600-E*-E 600 0M-11 260 590 152 156 1006 444 756 4(16)-30 756 4(16)-33 749.5 4(20)-35

All dimensions in mm unless specified otherwise

Item Description Material
1 Body Ductile Iron (Fusion Bonded Epoxy Coated)
2 Seat EPDM
3 Shaft SS431
4 Disc CF8M
5 Bushing PTFE
6 O Ring NBR
  Electric Actuator Powder Coated Aluminium

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM or FKM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Electric
