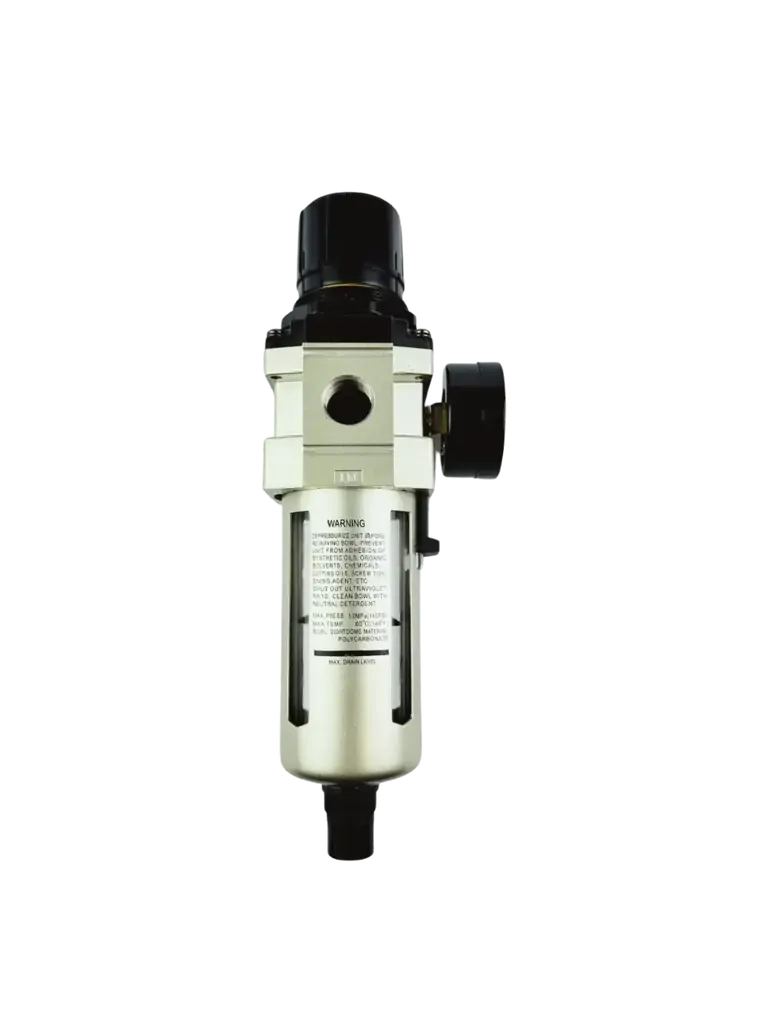

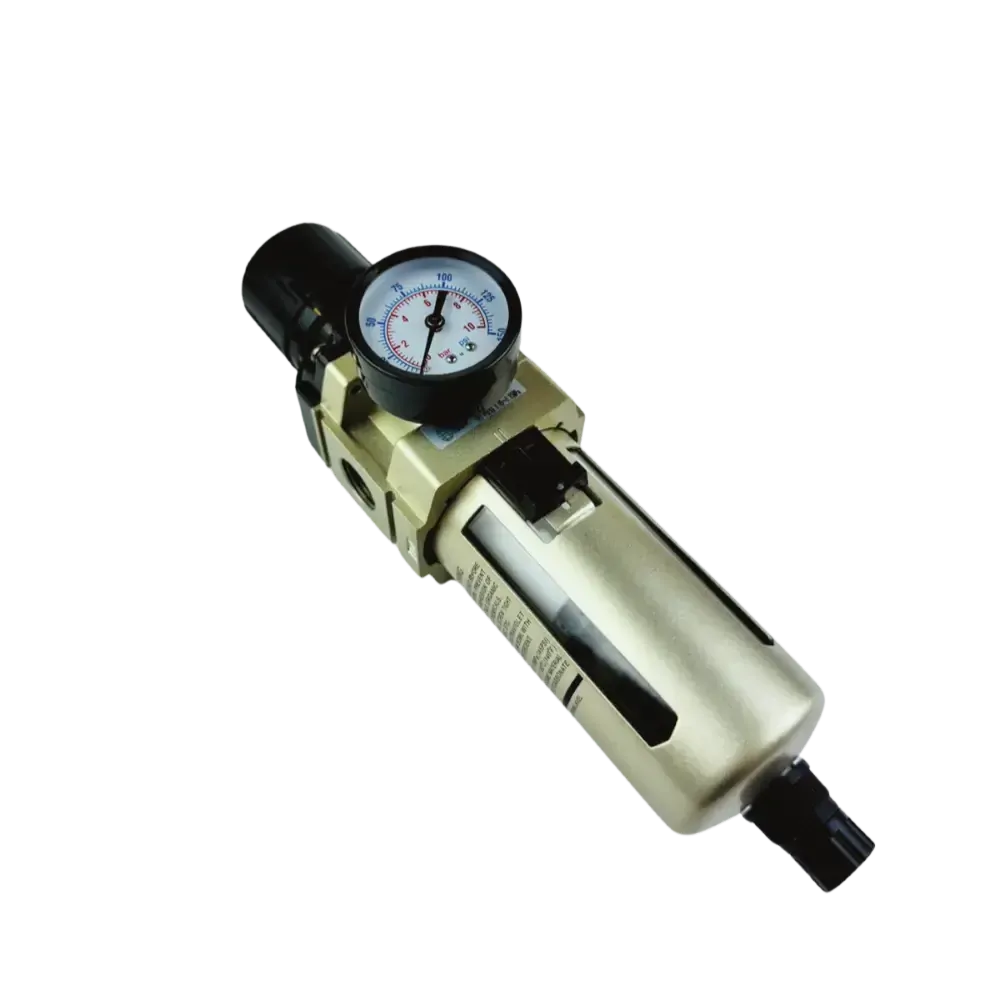

Allows you to effectively regulate (keep a constant downstream pressure) and filter (remove water, oil and other suspended debris) your air using one combined unit. Simple assembley makes for easy installation and maintanance. All units come with mounting bracket, guage, auto drain and polycarbonate bowl guard with sight glass. *Please note that you need a 2 Bar differential (30psi) to seat the drain to the filter upon start up so if you are running a very low pressure system please ensure you have this.

Specification FRE-02 FRE-03 FRE-04 FRE-05 FRE-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min 550 2000 4000 5000 5000
Pressure Range 2 to 8.5 Bar
Max Inlet Pressure 10 Bar
Medium Temperature 0 to 60°C
Media Air
Filtration 5µm
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type
Gauge Port Size G1/8” G1/4”
Replacement Element SP-FRE-02 SP-FRE-03 SP-FRE-04 SP-FRE-05

Air Filter Regulator Dimensions

Model A B C D E F G H I J K N Auto Drain B
FRE-02 40 187.5 78 2.3 34 5.4 G1/4” 15.4 57 30 45 33.5 187.5
FRE-03 53 211 92 2.3 40 6.5 G3/8” 8 61 41 46 42.5 248.5
FRE-04 70 263 112 2.3 54 8.5 G1/2” 10.5 70.5 50 54 52.5 300
FRE-05 70 263 112 2.3 54 8.5 G3/4” 10.5 70.5 50 54 52.5 304
FRE-06 90 312 114 3.2 66 11 G1” 13 70.5 70 66 52.5 349
All dimensions in mm unless shown otherwise.



Size 1/4" to 1" BSP
Function Filter Regulator with auto drain
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air
