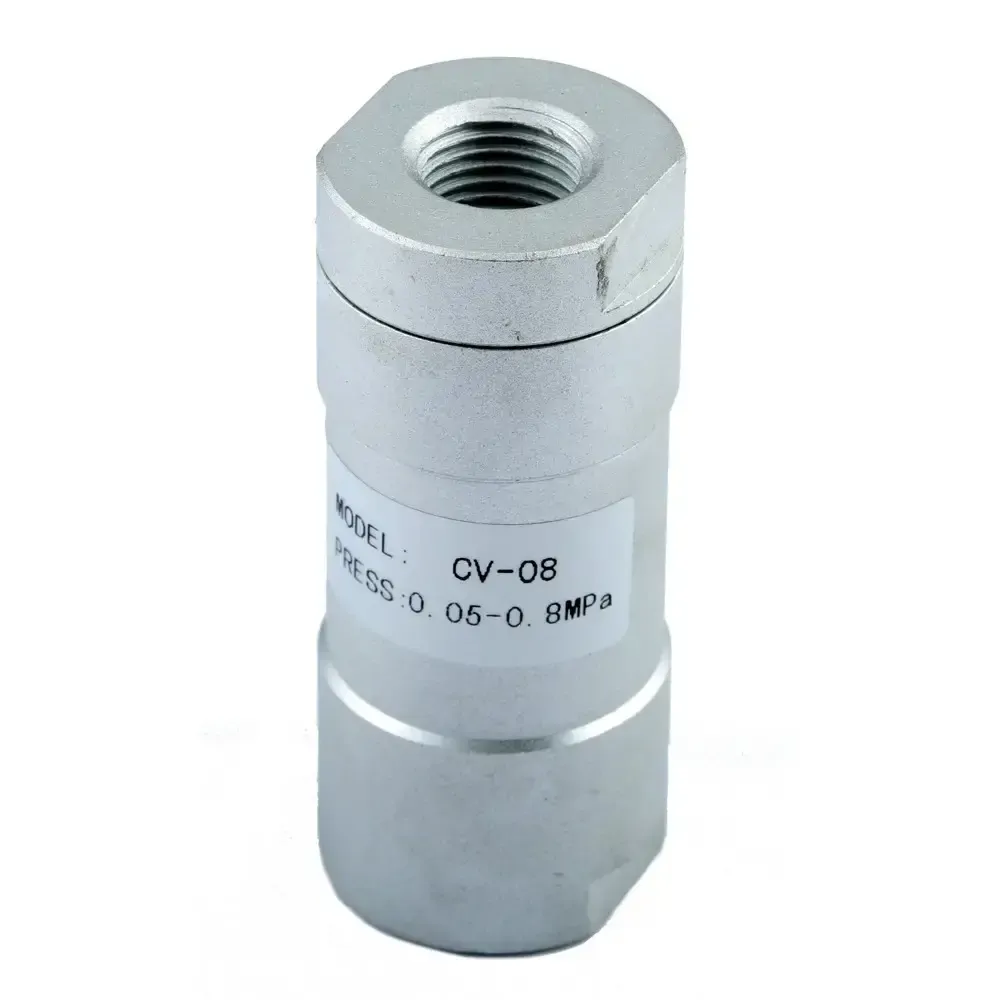

Aluminium in line check valve for air and inert gases. It has a 0.5 to 12 BAR operating pressure range with media temperatures from-5 to 60°C. Great for installation in pneumatic systems where backflow prevention is needed. Can install in any direction. From 1/8" to 1" BSP.

Specification ACV-01 ACV-02 ACV-03 ACV-04 ACV-05 ACV-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 6mm 8mm 10mm 15mm 20mm 25mm
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Aluminium
Lubrication Not Required
Applicable Medium Air

In line AIr Check Valve

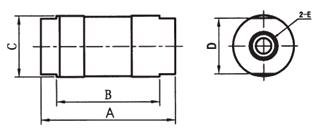

Specification A B C D E
ACV-01 64 53 Ø28 24 G1/8”
ACV-02 64 53 Ø28 24 G1/4”
ACV-03 86 66 Ø39.5 36 G3/8”
ACV-04 86 66 Ø39.5 36 G1/2"
ACV-05 112 90 Ø53.5 46 G3/4”
ACV-06 112 90 Ø53.5 46 G1”
All dimensions in mm unless shown otherwise.

Size 1/8" to 1" BSP
Function Check Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air
