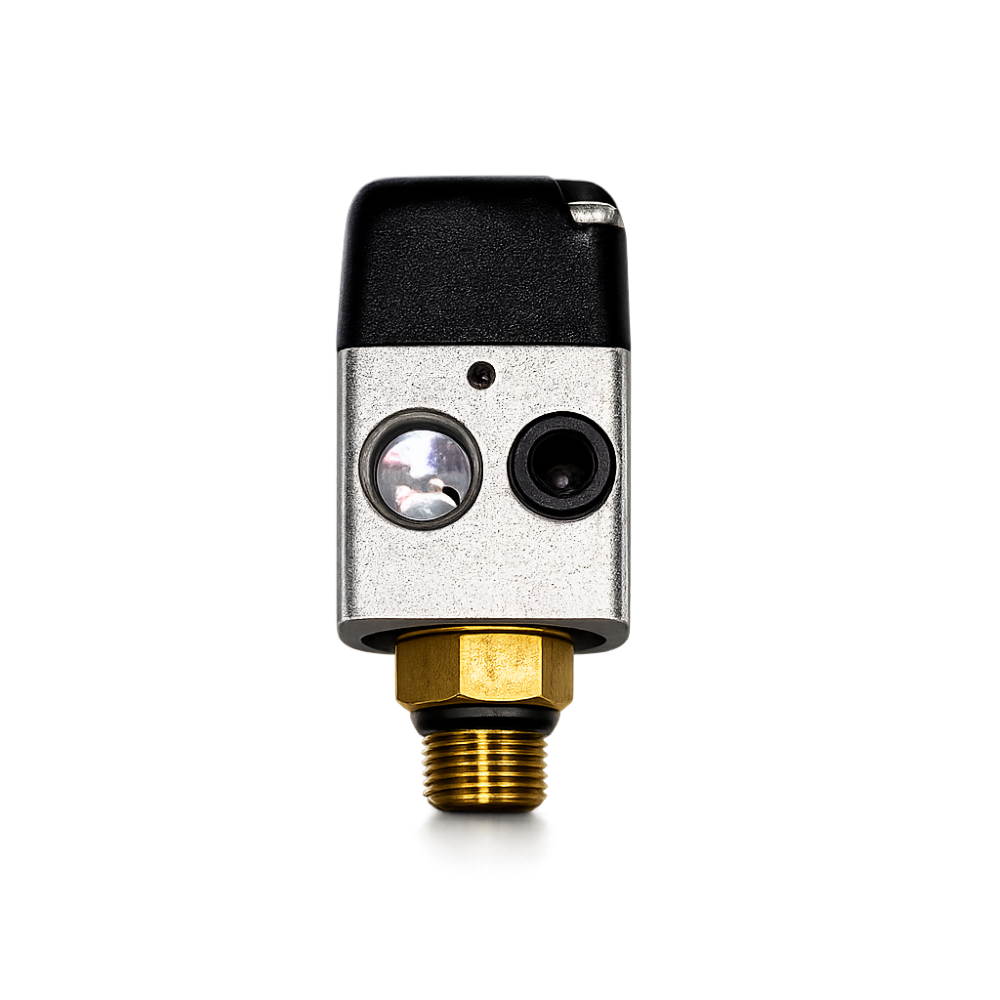

This pilot check valve only allows air to flow through the valve in the presence of a pilot signal. Commonly used in applications where flow should only occur once another system (pilot) is activated.

Pilot Check Valve Symbol

Specification APC-01
Port Size G1/8”
Nominal Diameter 4mm
Pressure Range 0.5 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Top Reinforced Plastic
Lubrication Not Required
Applicable Medium Air

Pilot Check Valve Dimensions

Size 1/8" BSP only
Function Pilot Check Valve
Body Aluminium
Pressure Range 0.5 to 10 BAR
Media Air
