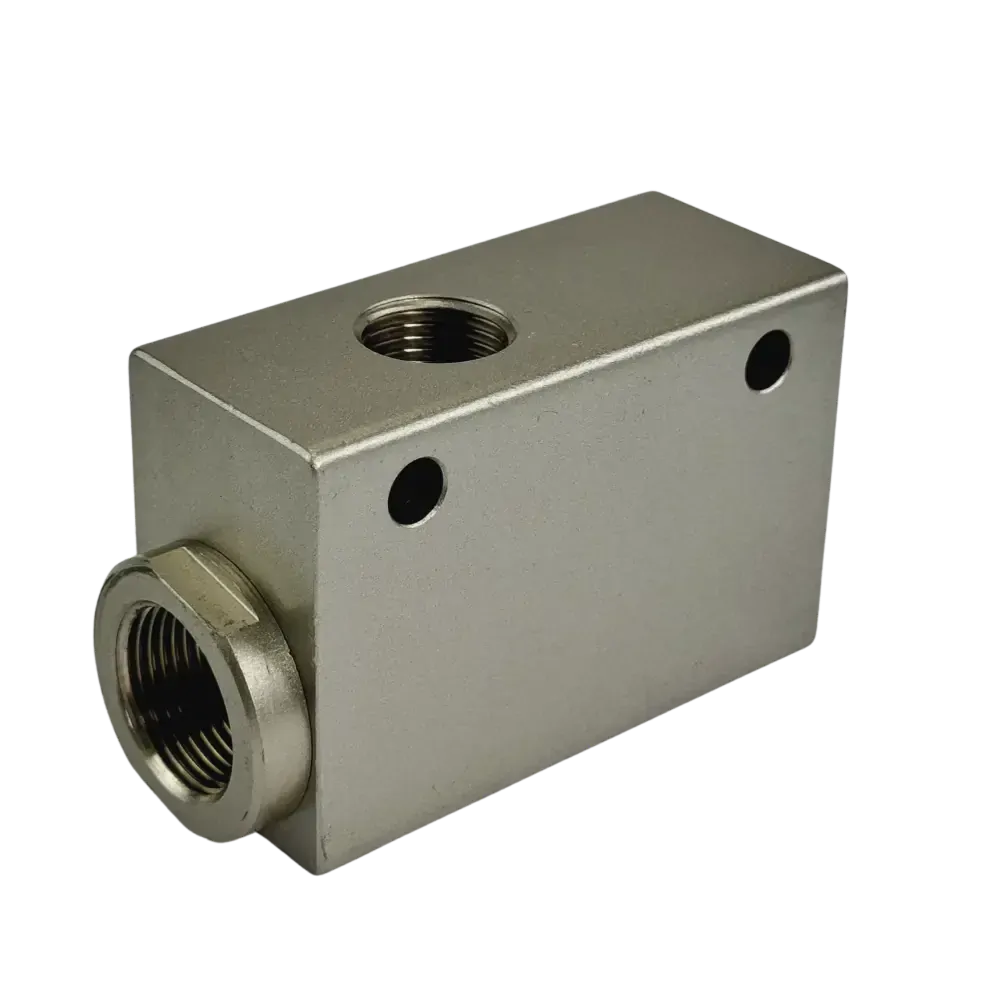

Allows air to be exhausted quickly without the need to go back to the control valve. Great for increasing the speed of pneumatic cylinders and actuators as it dumps the exhaust air directly to atmosphere bypassing the need for it to go back through the control valve. Easy to install and use.

Quick Exhaust Valve Symbol

Specification AQE-01 AQE-02 AQE-03 AQE-04 AQE-05 AQE-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 6mm 8mm 10mm 15mm 20mm 25mm
Exhaust Port Size G1/4” G3/8” G3/8” G3/4” G3/4” G1”
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Lubrication Not Required
Applicable Medium Air

Quick Exhaust Valve Dimensions

Specification A B C D E F G H
AQE-01 40 32 27 11 30 Ø4.3 G1/8” 22
AQE-02 55 40 32 16 39 Ø5.5 G1/4” 26
AQE-03 55 40 32 16 39 Ø5.5 G3/8” 26
AQE-04 99 60 50 20 60 Ø8.5 G1/2" 40
AQE-05 99 60 50 20 60 Ø8.5 G3/4” 40
AQE-06 113 75 63 26 80 Ø8.5 G1” 50

All dimensions in mm unless shown otherwise.

Size 1/8" to 1" BSP
Function Quick Exhaust Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air
