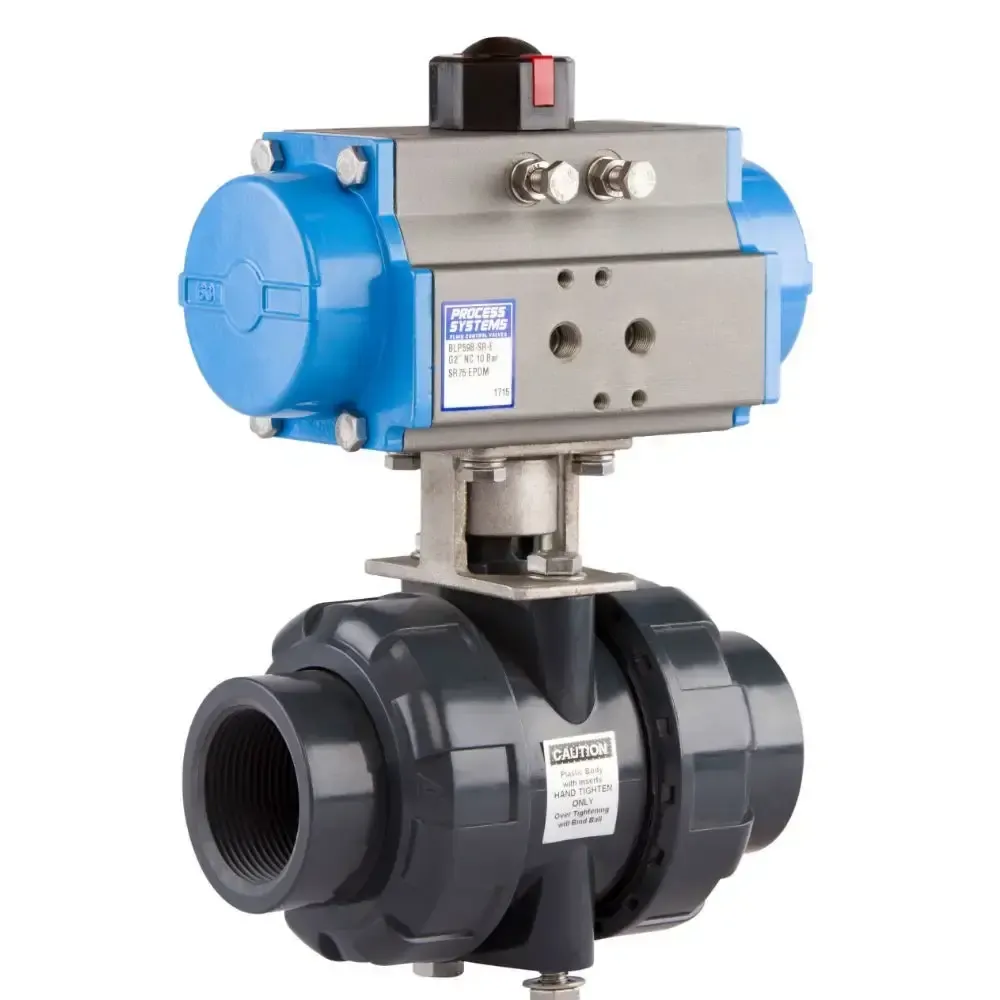

2 way UV stabilised PVC ball valve with double acting pneumatic actuator. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Available in BSP threaded (Threads conform to ISO 7.1 Sealing Threads.) and solvent weld ends (ANSI Standard designed to fit Schdule 40 & 80 pipe).

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP4B-DA-E 1/2 15 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP5B-DA-E 3/4 20 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP6B-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7B-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8B-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9B-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10B-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11B-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12B-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"



Double Acting PVC Ball Valve

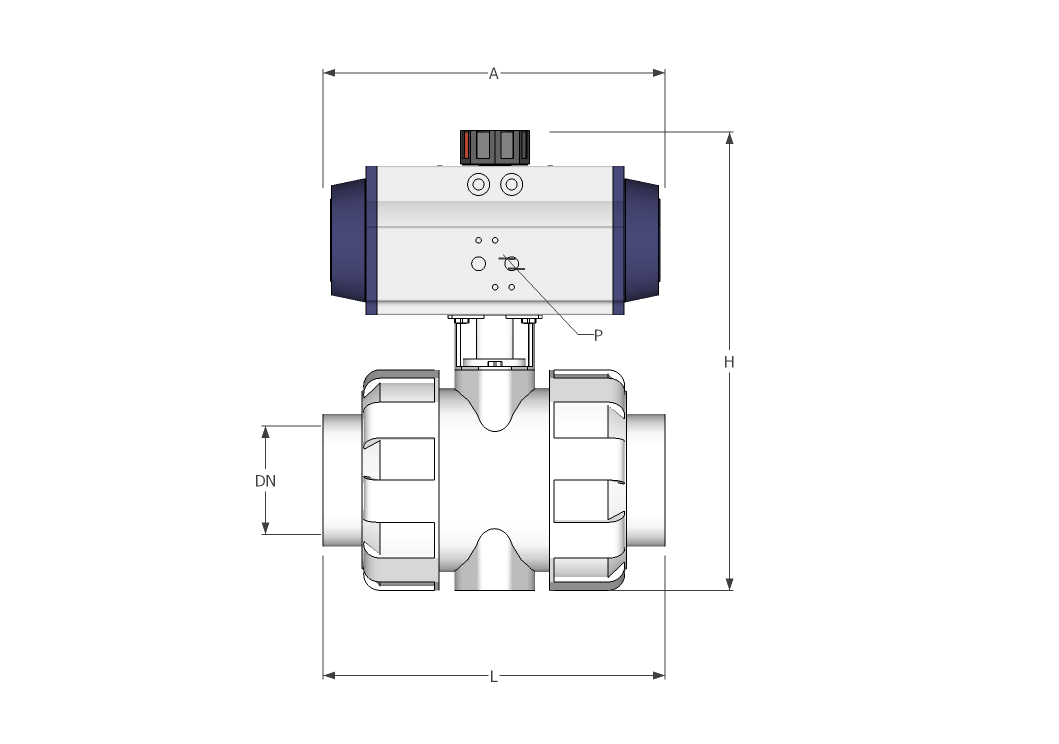

Model DN L H A P
BLP4B-DA-E 15 110 173 138 1/8”
BLP5B-DA-E 20 115 182 138 1/8”
BLP6B-DA-E 25 130 193 138 1/8”
BLP7B-DA-E 32 142 226 162 1/8”
BLP8B-DA-E 40 160 239 162 1/8”
BLP9B-DA-E 50 173 271 162 1/8”
BLP10B-DA-E 65 250 317 208 1/8”
BLP11B-DA-E 80 270 337 208 1/8”
BLP12B-DA-E 100 310 397 208 1/8”

Double Acting PVC Ball Valve

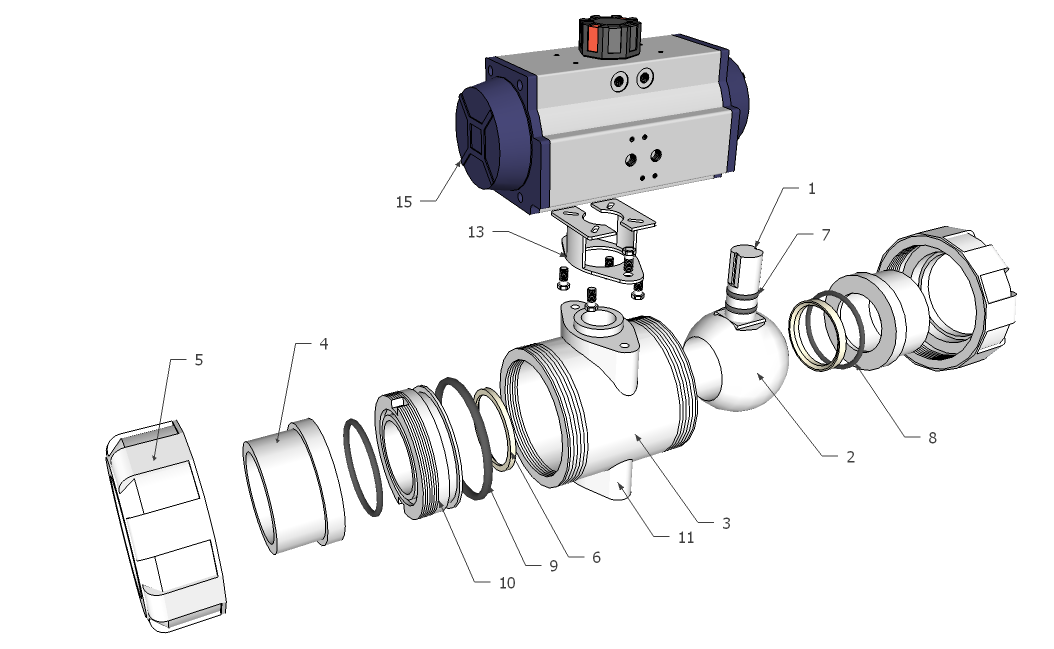

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Double Acting Actuator Anodized Aluminium

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic
