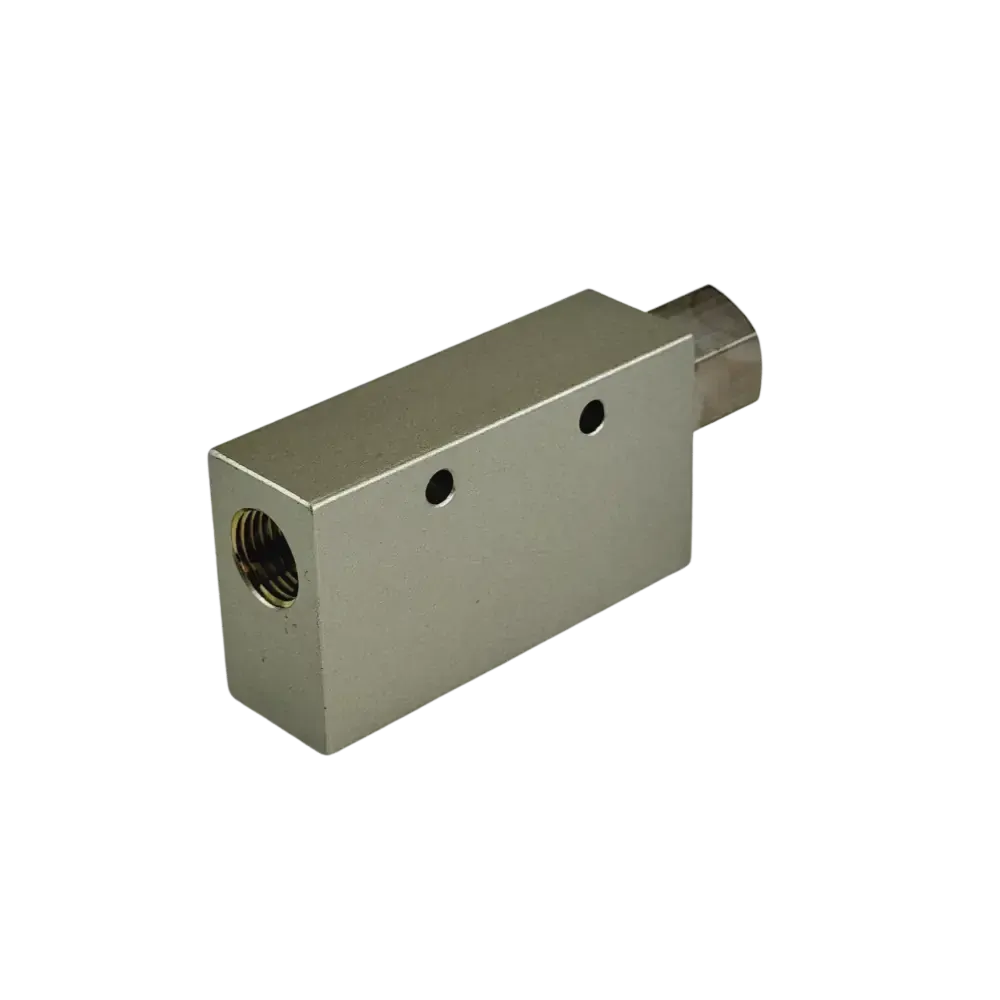

Aluminium vacuum generator commonly used in place of vacuum pump. Vacuum is created by venturi effect, passing compressd air by an open orrifice. Medium temperature range or 0°C to 60°C. Cheaper way of creating vacuum for simple applications instead of vacuum pump.

Model Size Nominal Vacuum Generated Air Consumption Air Displacement
VAC-01 ⅛” -80 kpa 44 L/min 27 L/min
VAC-02 ¼” -80 kpa 100 L/min 63 L/min
VAC-03 ⅜” -80 kpa 180 L/min 110 L/min

Pneumatic Vacuum Generator

Model A B C D E F G H
VAC-01 55 45 20 4 1/8" 16 10 32
VAC-02 78 63 25 4.6 1/4" 20 11 35
VAC-03 105 85 31.5 6 3/8" 25 15 40

All dimensions in mm unless shown otherwise.

Size 1/8" to 3/8" BSP
Function Vacuum generator
Body Aluminium
Pressure Range 0.5 to 10 BAR
Media Air
